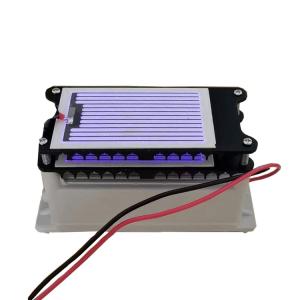

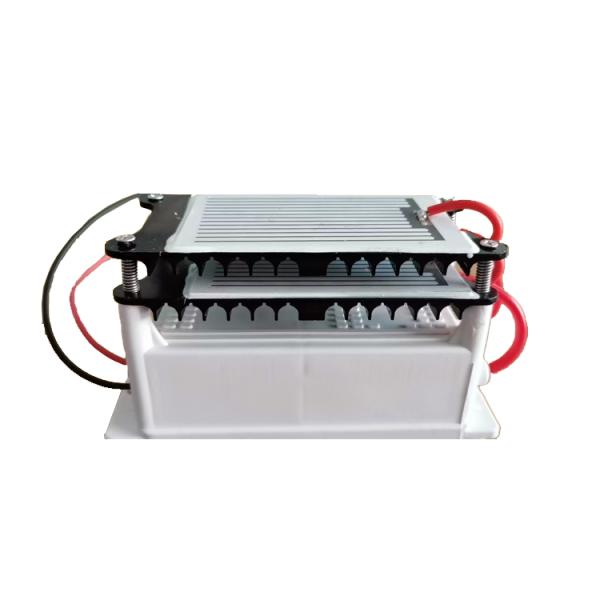

Ozone Generator Accessories
Feature
1. High Ozone Production Rate
High-voltage and high-frequency corona discharge, small size transformer, low consumption rate of electricity.
2. Moisture-proof
Epoxy potting, Damp proof, Waterproof, Corrosion proof transformer.
3. Easy installation and maintenance
Structure of this ozone generator is convenient for the cleaning and replacement of ozone plates.
4. Ultra Long Service Life
Long-life ceramic plates are made through green production on 96% aluminum oxide ceramics, with silk-screen discharge resistance of tungsten and molybdenum and other agents, flattened and tin-treated on electrodes after co-firing to high temperature 1650 ℃.High temperature co-firing electrodes and circuit its never fall off, and are with excellent moisture and oxidation resistance.
Technical parameter
| Item | Ozone Generator Accessories |
| Ozone output | 5g/hr |
| Size of ozone plate | 90*50*1.0mm |
| Dimension(L*W*H) | 5.7”*2.2”*3.0”(143*56*62mm) |
| Voltage | 110-220VAC |
| Generating Method | Corona Discharge |
| Application | Car, RV, Outdoor, Hotel, Garage, Commercial, Household |
| Weight | 0.5KG |
Test conditions:
1. Feed Gas: Dry air or oxygen source recommendated
2. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.)
Application
Ozone has disinfection, sterilization, in addition to the role of peculiar smell, at large ozone used in cold storage, granary, factories and other large space, in small specifications of ozone used to air purifier, refrigerator, washing machine and other household appliances and cars.
