3/8'' Threaded Connection Ceramic Igniters High Strength Heat Resistant For Pellet Stove

  • 1
  • 2
  • 3

Brand Name : KRHX

Model Number : KR-W4

Certification : CE

Place of Origin : China

MOQ : 10

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 1000PCS/Week

Delivery Time : 5-8 workdays

Packaging Details : In cartons each containing 20 boxes

Name : Pellet stove resistance ceramic resistance pellet

Temperature up to : 950°C

Feature : Fast Heating

Voltage : 230V

Power : 250-300W

Application : Pellet stoves / boilers

Dimension(L*W*H) : 11.5*106 mm

Time to ignition : About 90 seconds

Terminal : ultrasonic + crimping

Lead wire : Silicone outside and fibre inside

Contact Now

Pellet stove resistance ceramic resistance pellet

Kairui offers ceramic igniters for hot surface ignition systems in heating applications.

These high strength, heat resistant ceramic igniters have become an industry standard in biomass heating systems.

Their superior materials and rapid heating capabilities provide reliable performance over a long useful life.

Pellet stove lighting ceramic resistor – ignitor, with 3/8″ threaded connection.

No Perforated version.

Size

φ11.5*145mm
Up to screw length - 120 mm
Diameter - 11.5 mm

Power

350-480 Watts.

Maximum temperature

970 ° C

Application

Resistance,

ignition glow plug for ceramic pellet stoves, suitable for pellet ignition and wood chips for stoves, boilers and burners.

Tested

for over 10,000 ON / OFF cycles, with fast ignition times.

Flange

G3/8 brass flange

Mounts on stoves

Central heating boilers

PELLASX pellet burners.

Detailed Images

3/8'' Threaded Connection Ceramic Igniters High Strength Heat Resistant For Pellet Stove

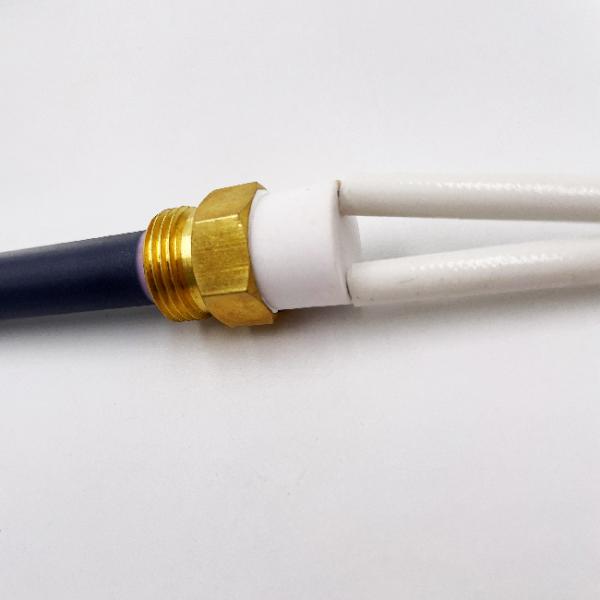

CERAMIC IGNITER IS NON-THOUGH HOLE SEE BELOW PICTURE

3/8'' Threaded Connection Ceramic Igniters High Strength Heat Resistant For Pellet Stove

Up to screw length: 80 mm

3/8'' Threaded Connection Ceramic Igniters High Strength Heat Resistant For Pellet Stove

* Ceramic heater (ceramic igniter)

They are one of the earliest and until recently the most popular resistors for pellet burners and stoves. For their production special high-temperature ceramics are used, and the heater itself is an open type and the reotan is discovered for the most part. Ceramic igniters use the effect of radiant heat, which heats the ambient air and thus indirectly ignites the pellets. Ceramic heaters are very efficient and economical and have almost 2 times higher temperature than traditional metal resistors. Popular types are round and flat ceramic heater.
